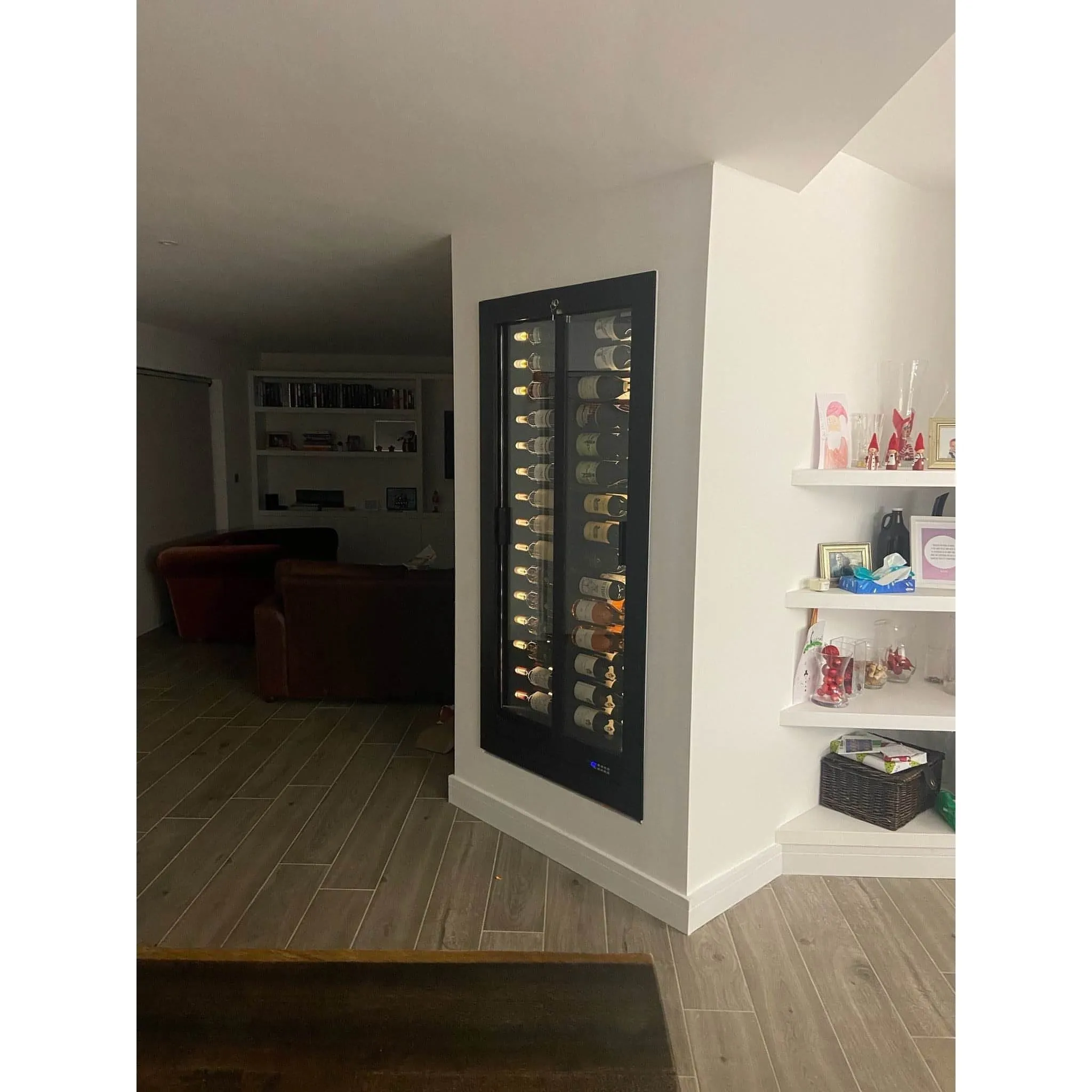

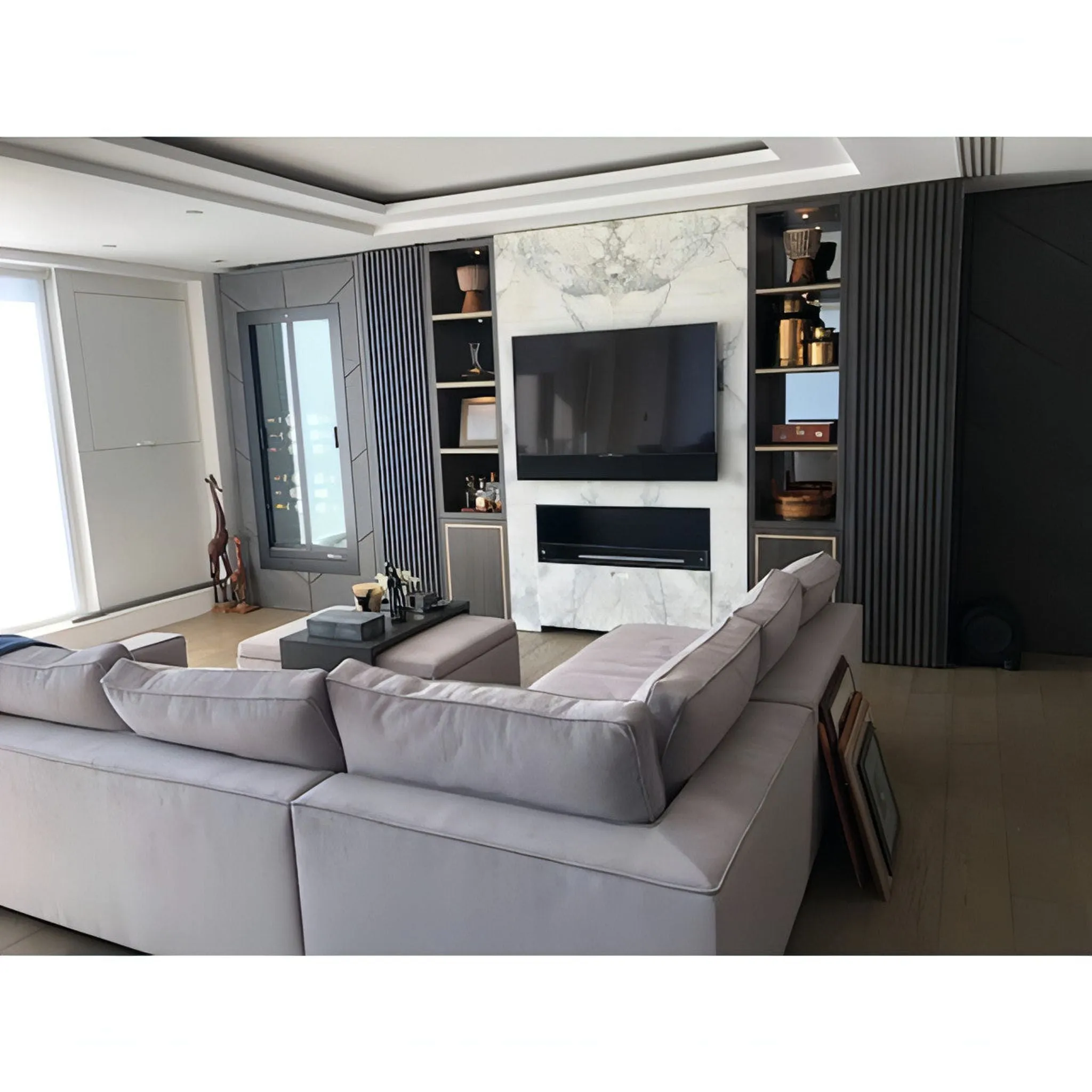

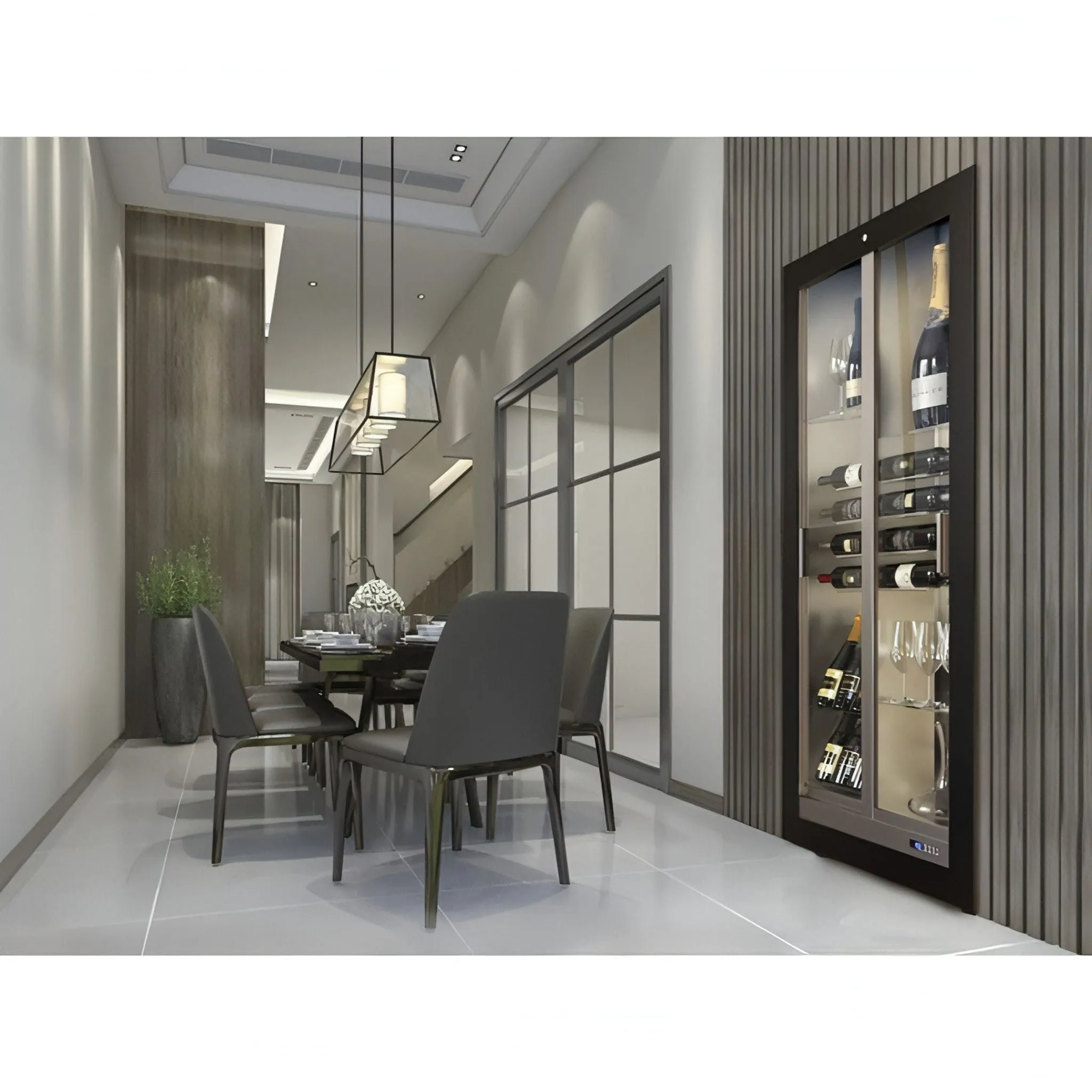

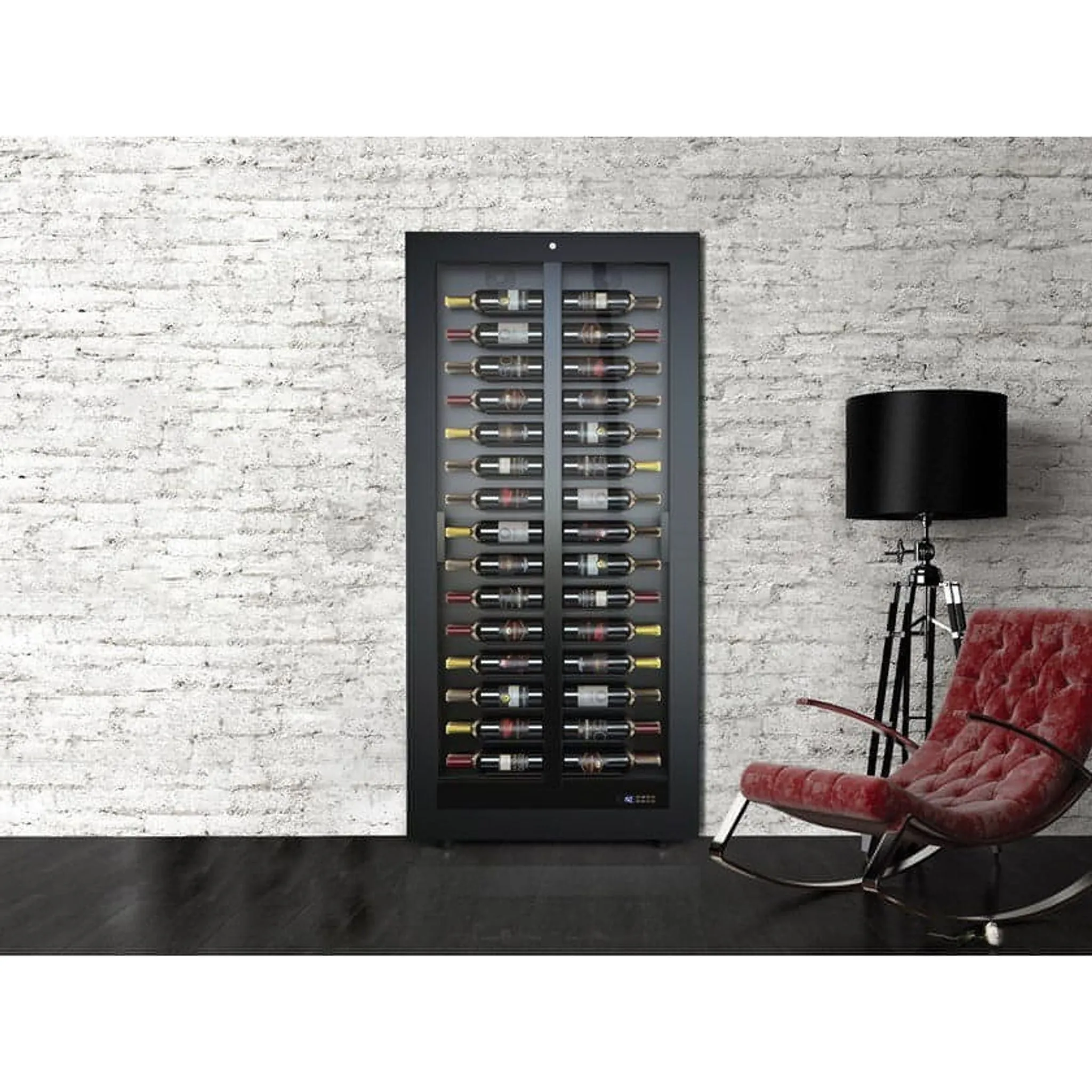

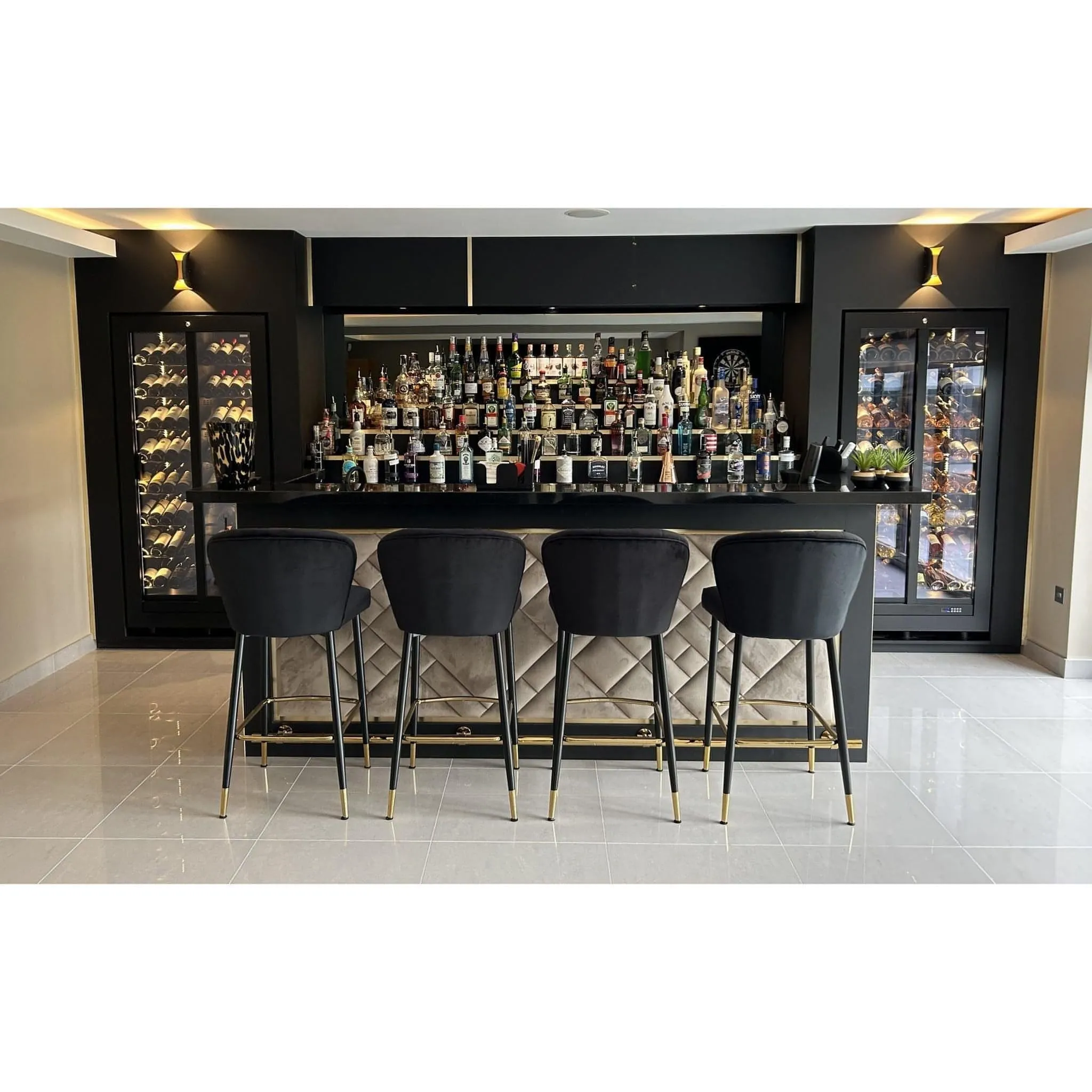

The TecaBrange is the built-inversion from the Teca Vino range, this model can bebuilt into an alcove, a wall or cabinets to create a seamless finish. The wine wall has a full aluminium structure which can be manufactured to have different frame finishes attached to the front to create a real feature piece.
*Pricing on website is based on RAL9005 matte black frame, with standard LED lighting*Please contact us for a quotation if you would like a different finish as prices may vary. See thehere for the range of frames and colours available.
Key Features
- Aluminium finish with warm white LED lighting (ON/OFF switch)
- Slidingdoors (double glazed and UV treated)
- Shelf configuration: horizontal bottles.Maximum bottle height is 370mm, max. diameter is 93mm.
- Digital temperature controller (5 - 18C)
- Rechargeable carbon filter
- HPL / MDF frameis mountedwith a snap-on system (easy installation)
- Automatic defrost and automatic evaporation system
- Anti vibration system
- Inverter compressor
- Lock with key
- Heated rails
- Ventilated and static cooling system - fan ON/OFF
- Warranty: 2 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only
Choice of models:

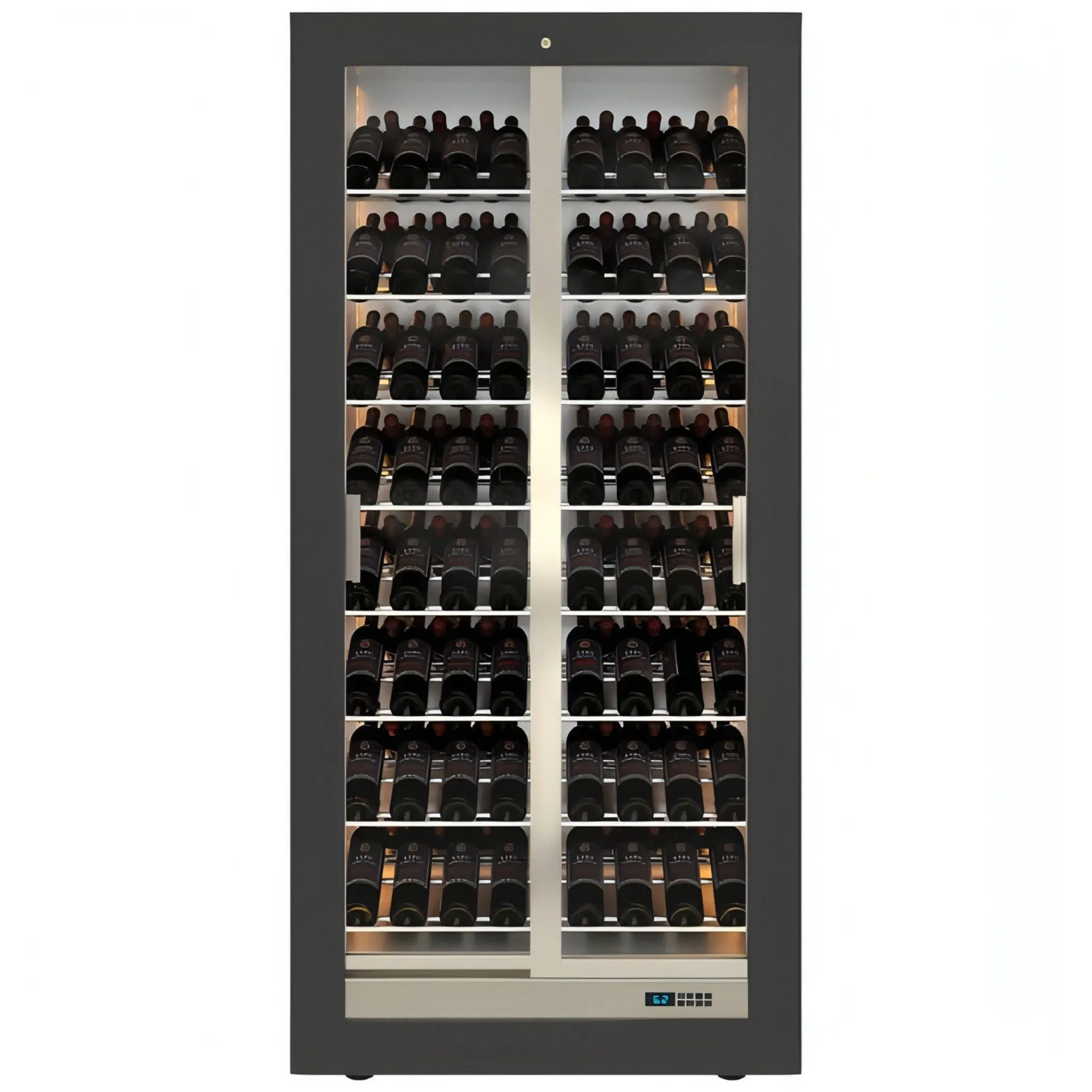

-TBE-M12: 120 Bottle capacity,557mm depth, front glass doors
Customise your own wine wall
-Frame: 1) Linearfinish or 2) Dunefinish
-Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary).Please see thehere for the range of frames and colours available.

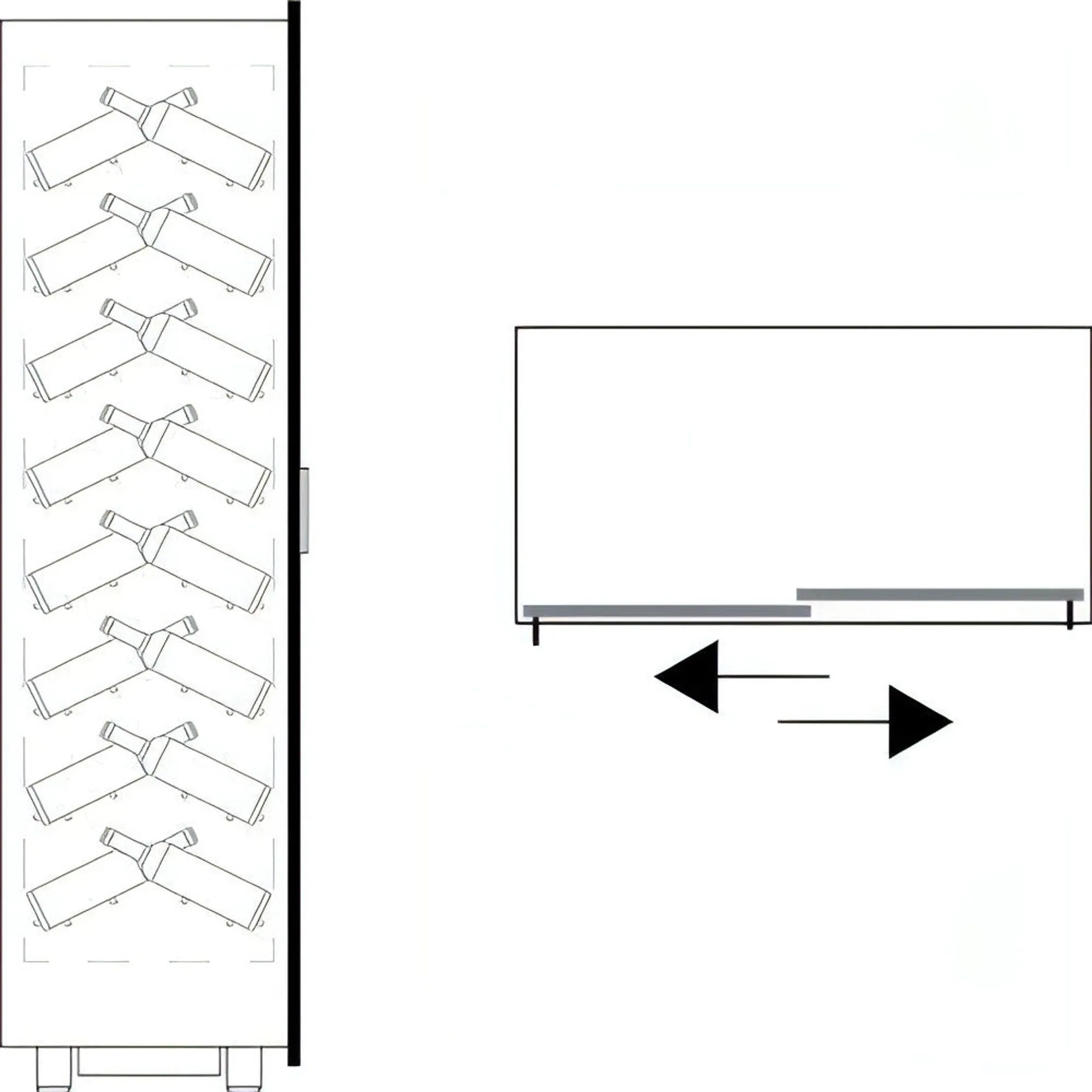

-Bottle Configuration: the TBE-12 comes withtiltedshelving only, if you would like to customise shelving, please see TBE-14.
-Add optional extras(additional charges apply- please contact us to arrange this):
1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)
2) Sprayed all black (matte) internally and externally
Temperature Control
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4C:
Fans off - the wine wall will operate between 4Cat the bottom and 16Cat the top.
Fans on - the wine wall will operate between 4C at the bottom and 10C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Specification
Dimensions: Height: 1865mm Width: 874mm Depth: 557mm
Weight: 109kg
