Della Marta Wine Wall - Mod 20 MD-20 with Horizontal Bottle Shelving-For Home Use
The Mod 20 range is effectively your custom-made refrigerated wine cabinet where you choose your style offramethat matches the dcor and thefurnishing in your home. You can even join more than one module together - this will create a truly unique piece of furniture
MD-20can be installed as a freestanding unit, or built into a wall/alcove for a seamless finish depending on which model you choose. TheMod 20 rangehas a full aluminium structure and is completed with a wooden framein a traditional orlinear style.
*Pricing on website is based on L11 matte black frame, with standard LED lighting and a full frame including side panels.*Please contact us for a quotation if you would like a different finish as prices can vary.
See the here for the range of cladding and colours available.
Key Features
- Aluminium finish with warm white LED lighting
- Side-by-side hinged door (double glazed and UV treated)

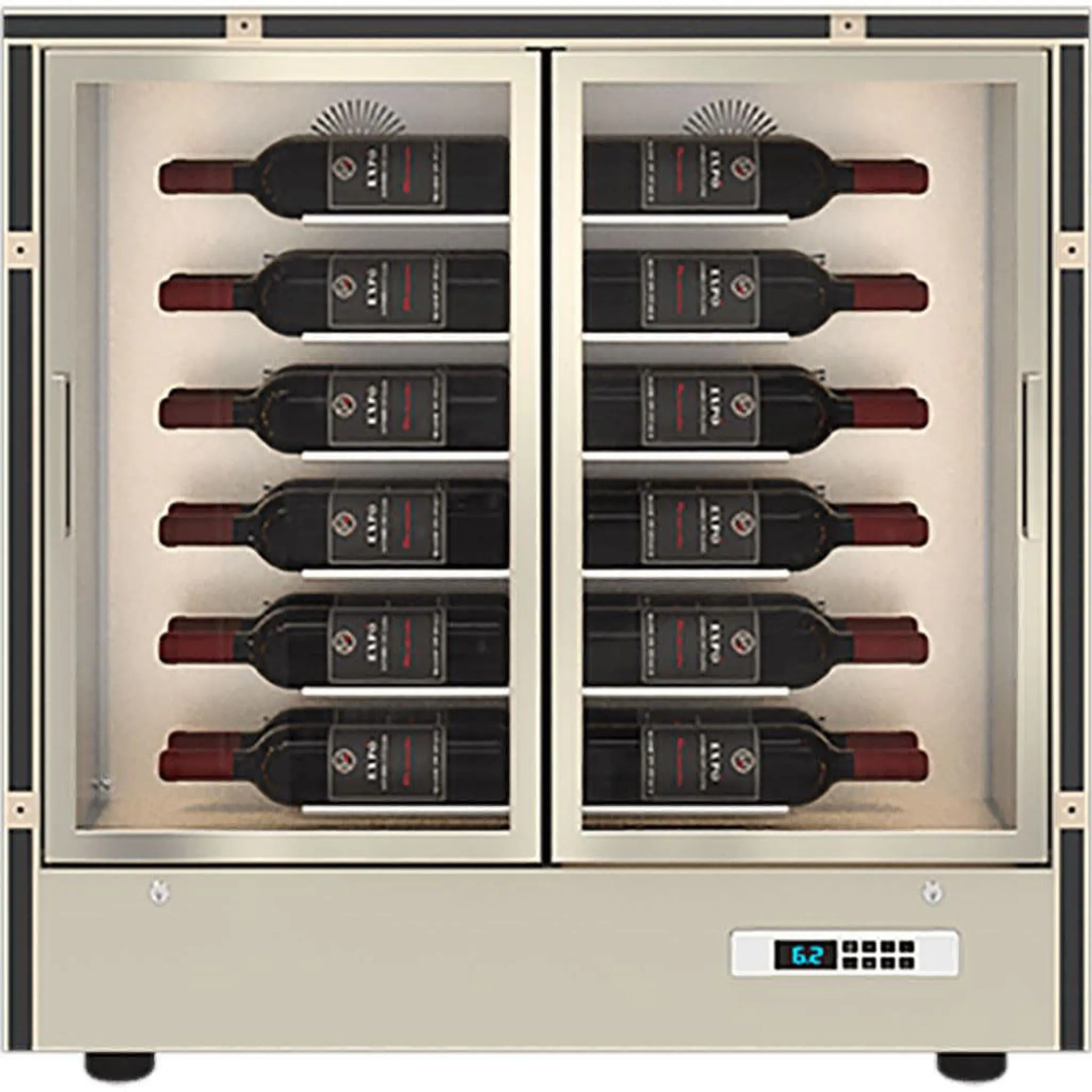

- Shelf configuration: horizontal bottles.Maximum bottle height is 370mm, max. diameter is 93mm.
- Digital temperature controller (5 - 18C)
- Rechargeable carbon filter
- Magnetic strips for the decorative trims
- Automatic defrost and automatic evaporation system
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated and static cooling system - fan ON/OFF
- Warranty: 2 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only
Choice of 3 models (various depths)
-MD-H20: 24 Bottle capacity, 363mm depth, front glass doors
-MD-M20: 48Bottle capacity,515mm depth, front glass doors
-MD-C20: 48Bottle capacity,520mm depth, front and back glass doors (see-through)
Customise your own wine wall
-Frame: 1) Linear style or 2) Traditional style or 3) FIT cladding (freestanding installation only)
-Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary).Please see thehere.
-Bottle Configuration: the MD-20 comes withhorizontal shelving only, if you would like to customise shelving, please see MD-24.
-Add optional extras(additional charges apply- please contact us to arrange this):
1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)
2) Sprayed all black (matte) internally and externally
Temperature Control
TheMod 20wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4C:
Fans off - the wine wall will operate between 4C at the bottom and 16C at the top.
Fans on - the wine wall will operate between 4C at the bottom and 10C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Specification
Dimensions: Height: 903mm Width: 900mm Depth: 363mm
Weight: 59kg
Dimensions: Height: 903mm Width: 900mm Depth: 515mm
Weight: 69kg
Dimensions: Height: 903mm Width: 900mm Depth: 520mm
Weight: 79kg
